Eliminating 2.0 TSI Turbo Lag and Hesitation for VW Eos/MK6 GTI/CC/Passat/GLI using S-Drive SP11

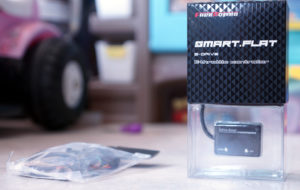

DSC08350Throttle boosters have been around for decades, especially after the 80’s when electronic throttle control became more of a standard in modern cars. In layman’s term, throttle booster is a small digital device that intercepts and amplifies the electronic signal between the accelerator pedal and the ECU.

However, throttle control wasn’t always electronic. Back then, when you stepped on the gas pedal, the throttle plate immediately flips open and sucks more air into the engine. The harder you pushed, the more power you’d get. It was simple and direct. Yet, it wasn’t very efficient because the vacuuming process put too much unnecessary load on the engine; thus wasting more fuel and affecting the longevity of many parts of the throttle system (if you want more details, check out this article by NYtimes).

  1. New vs. Old
  2. Pushing Harder on the Gas Pedal > Throttle Booster ?
  3. Stage 1 Tune, DSG Tune > Throttle Booster ?
  4. Throttle Booster Options
  5. Installation
  6. Fail-Safe Condition
  7. Test Video

1. New vs. Old

Now in your Eos or other Volkswagen models, you certainly have an electronic throttle control.

Image courtesy of aa1car.com

As opposed to the old way, once you step foot on the gas pedal, the request to open isn’t sent to the throttle valve right away. Instead, a sensor –called Pedal Travel Sensor, Part. 1K1 723 503 AK— measures your pedal position first and then it delivers this signal to the the central computer (a.k.a ECU or ECM/PCM); from here, the ECU combines inputs from other sensors such as the Mass Air Flow sensor, Boost Absolute Pressure sensor, etc…before it finally determines how much to order the throttle valve open via electric impulse.

Quite a complicated process there; and this system is called a drive-by-wire. A lot of people hate it, because it limits the power of the car; or the power is there somewhere, but it arrives very slowly to save on fuel, hence the hesitation. The benefit of this system is that now we have a smarter car; knowing when your wheels are slipping, reducing torque steering and helping the brake system work more effectively.

In summary, old throttle control is like ringing an actual bell at somebody’s front door in the old days. You pull the string, ring the bell, hear the sound then you run off.

The electronic throttle control is like pressing the button on the door entry system, you have to wait for the signal travels to the receiver inside the house before somebody hears something.

2. Pushing Harder on the Gas Pedal > Throttle Booster ?

Over the years, the throttle booster is guilty as the cause of hundreds of debates in pretty much every forum about cars. People who try it, most likely will love it. Here are couple to read :

ft86club – Throttle Controllers, Myth or Magic? Sprint Booster Testing
golfmk6 – The drivability problem nobody is talking about: throttle response

On the other hand, people who don’t due to the way they see how the device works, will probably demand trial by combat before they’d ever change their mind. They’d also tell you to get a stage 1 tune instead; but we’ll go over this in a bit.

First, we understand that the throttle booster boosts/amplifies the signal to tell the ECU open the throttle more. People opposes to the use of throttle booster would argue that you can do this simply by stepping the gas pedal harder; thus this device is a waste of money. However, it’s only half of the equation. See if you could tell.

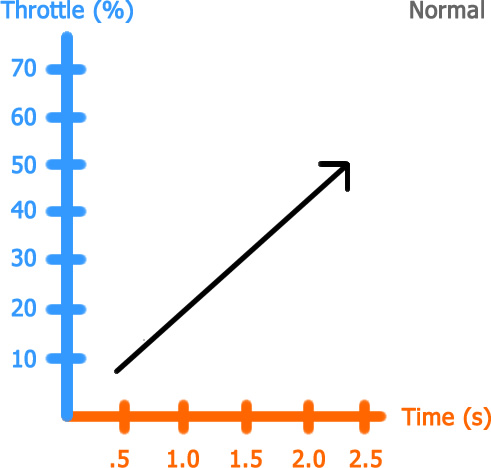

throttle-normalA – Normal foot pressure on the gas pedal at 10% increase interval.

The graph is pretty lineage. Throttle open is completely determined by the ECU and pedal position; all the way until throttle fully opens at 100%.

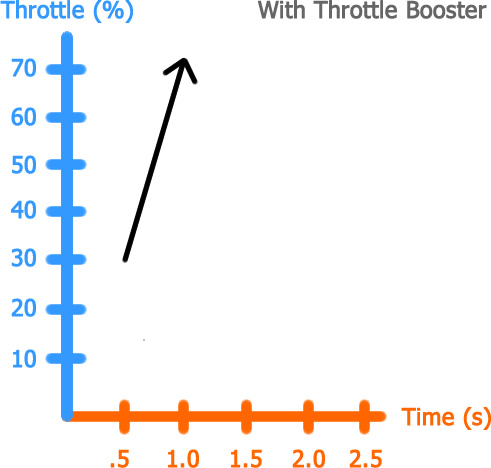

throttleboostedB – Normal foot pressure on the gas pedal at 10% increase interval + Throttle Booster amplifies the signal 3 times.

At 10% throttle will actually be seen at 30% by the ECU, 20% will be 60% , 30% will be at 90%, etc… until maxed out at 100%.

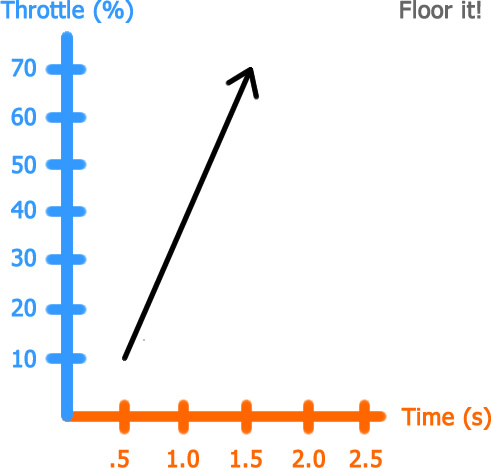

throttle-flooritC – Pushing hard on the pedal.

Due to the restriction of throttle position sensor, the throttle response is still being delayed; yet the amount of time it takes to 100% throttle open is much shorter than in normal acceleration.

As you can see, the electronic throttle control plays an important role in the acceleration of the vehicle. Perhaps, that multiplies ten fold when it comes to turbocharged engine, where turbo lag is also another problem. Though we have done several things in the past to improve the turbo lag, such as cleaning the MAF sensor, IAT sensor, MAP sensor, Dogbone insert, GFB DV+, Cold Air Intake, etc…though they have helped greatly, you could still feel the car quite dull and heavy –simply because the throttle control wants to save you gas while the DSG transmission takes its time to engage the gears.

Most of us who drive other turbo engine or the 2.0T in our Eos definitely have experienced the 1-second hesitation, best described as where the engine seems to suddenly stall/loses power at low speed and jerks in low gears; then randomly wakes up and punches you to the seat; that makes even changing lane a risky attempt –you are either too slow, soon to be rear ended; or too fast as you try to floor it then you are gonna to hit someone in front of you. It’s a catch 22.

On other hand, those of use who drive in manual mode may see better response to your liking, yet at the end of the day you could still notice the laziness of such an aggressive engine.

So even if you are pushing real hard on the pedal, you are still under monitor of the throttle position sensor and this sensor only gradually increases the signal sent to the ECU. Normally, you always start at 10%~15% throttle open and then slowly raises up.

Under heavy foot, it will + 15-30% every half a second or less but it will never be as fast as having the signal amplified x three, four or five times by a Throttle Booster. Image on a coordinate plans, you got one graph looks a curve and the other one looks a stair –you bet one is smoother than the latter. Plus many people feels very uncomfortable when pushing the gas pedal that hard in everyday traffic just to be able to change the lane. I have attempted it once, my wheels slipped and torque steer turned my car in every direction –it’s too dangerous and unpredictable. It’s less of a problem with Torque Steering feature turned on, but it’s still a challenge when compared to a naturally aspirated engine in a Corolla or a Honda.

3. Stage 1 Tune, DSG Tune > Throttle Booster ?

maxresdefaultStage 1 tune technically recalibrates the engine’s and turbo charger’s efficiency –it deals with a very different part of the drivetrain. A tune tells the car to deliver power and torque at different conditions, so you could feel the car become more lively and experience less turbo lag. But turbo lag is not relevant to Throttle Response, especially Throttle Response Time.

Now the DSG Tune on other hand improves the gear management system. It helps your transmission shift more accurately and handle the new Stage 1 power better.

Both tunes are considerably the best mods for the 2.0T engine, they will completely change the characteristic of your car. However, the drawbacks are that they are very expensive and put more stress on the engine. It will be at least $1100 before labor fees and if the Volkswagen finds out, your car will be tagged as TD1 thus voiding all powertrain related warranty, does not matter if the dealer is mod-friendly or not.

The Throttle Booster on other hand is between $150 to $300 and if you have read through the thread on mk6 forum at the beginning of this post, you’ll learn that a lot of people who had already tuned their car said that the Throttle Booster is even a better mod for the money than the Stage 1 tune itself. Some even go as far as giving a statement that if they have to do it all over again, they would have bought the throttle controller first before purchasing a Stage 1 tune.

And last of all, it does not void your warranty. But make sure to take it off before you run the car in for service.

4. Throttle Booster Options

There are several throttle boosters on the market that are compatible with the Eos 2.0 turbo and VR6 engines; though you may find it slighly less effective for naturally aspirated engine. I do not have the VR6 engine to test, but from what I read in the first thread of the two links above, the user does enjoy having the Throttle Booster in his car. Also in the same thread, the poster introduces Sprint Booster so that’s your first option. Here are all the choices :

  1. Sprint Booster 2.0L DSG (click for other engine options)

  2. Pedalbox 2.0L DSG (click for other engine options)

  3. S-Drive SP11

pedalbox_large001I had my doubt just like anyone else who never tried the throttle booster before, thus I went for the lower priced option with proven quality from my research —Freepower S-Drive SP11. The installation are pretty much the same for any of them. Some may require an extra step to plug the cable into the OBD II connector for power.

  • The Sprint Booster is the most expensive but also with the least modes: Normal, Sport and Race settings. It’s also the only one that does not need additional power source from the ODB II port on your car.
  • Pedalbox is a nice throttle booster and the price is reasonable. It comes with more settings which allows you to fine tune the throttle response to your desire, similar to Freepower S-Drive SP11. The Pedalbox gives you 3 modes : Sport, Sport+ and Eco; with each mode comes with 6 levels for customization.

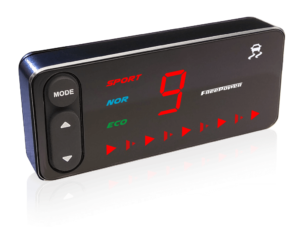

  • DSC08356SP-11 is more like the sibling of the Pedalbox on the outside and it packs with similar features, too : Eco, Normal, Sport and Lock.Each mode, except for Lock, gives you 6 to 11 levels of fine tuning. The Lock mode is a nice bonus whereas when On will deactivate the gas pedal. It’s a nice little bonus for when you park your Eos in the wild with the top down.

5. Installation

So I pulled the trigger and placed the order with seller mtektuning88 (Taiwan) on Ebay. Nice guy, responded to everything I asked. And to my surprise, the package arrived at my door just two days later. by DHL, of all carriers. UPS would take two weeks to ship my tools.

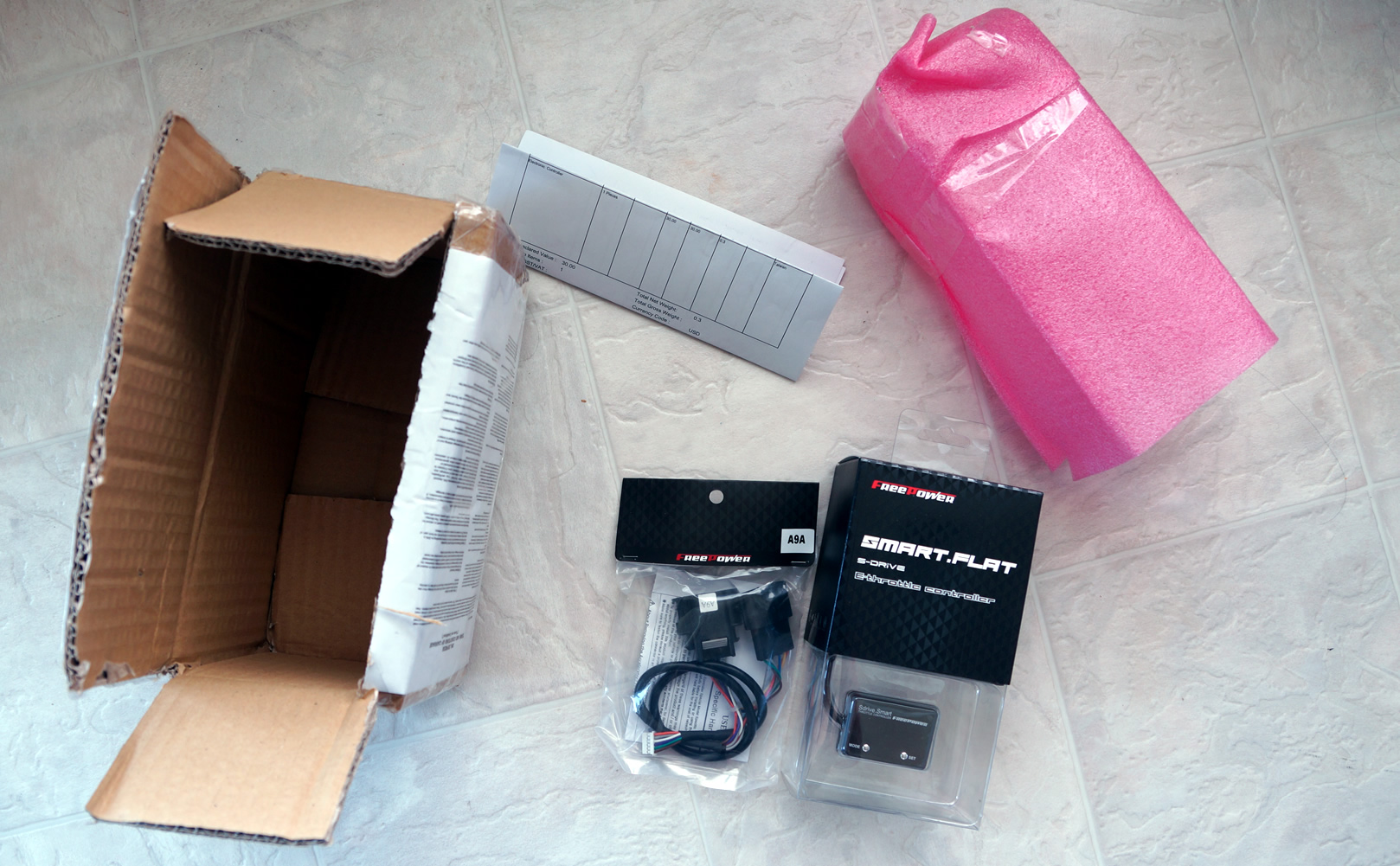

In the picture below, the bag on the left to the SP11 box — marked A9A — is the specific pedal connector for our VW Eos TSI model. There is a list of different connectors for different cars on the SP-11 page, make sure to take a look and confirm your vehicle’s fitment when order.

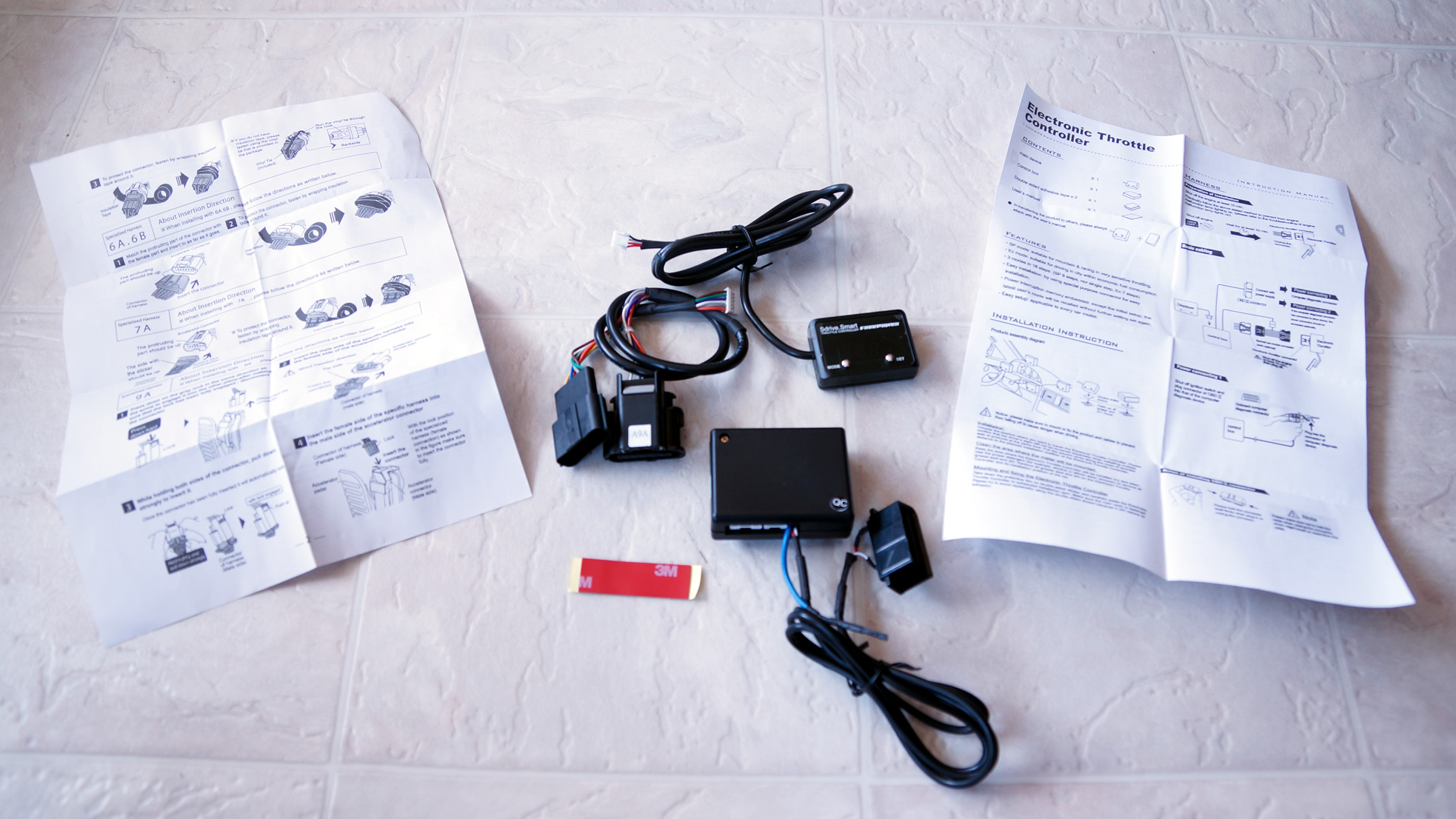

Here are what you should have inside the box.


Simply plug 2 small white connectors of the display box and the pedal cables into the central processing unit and your device is ready to be installed in the car.

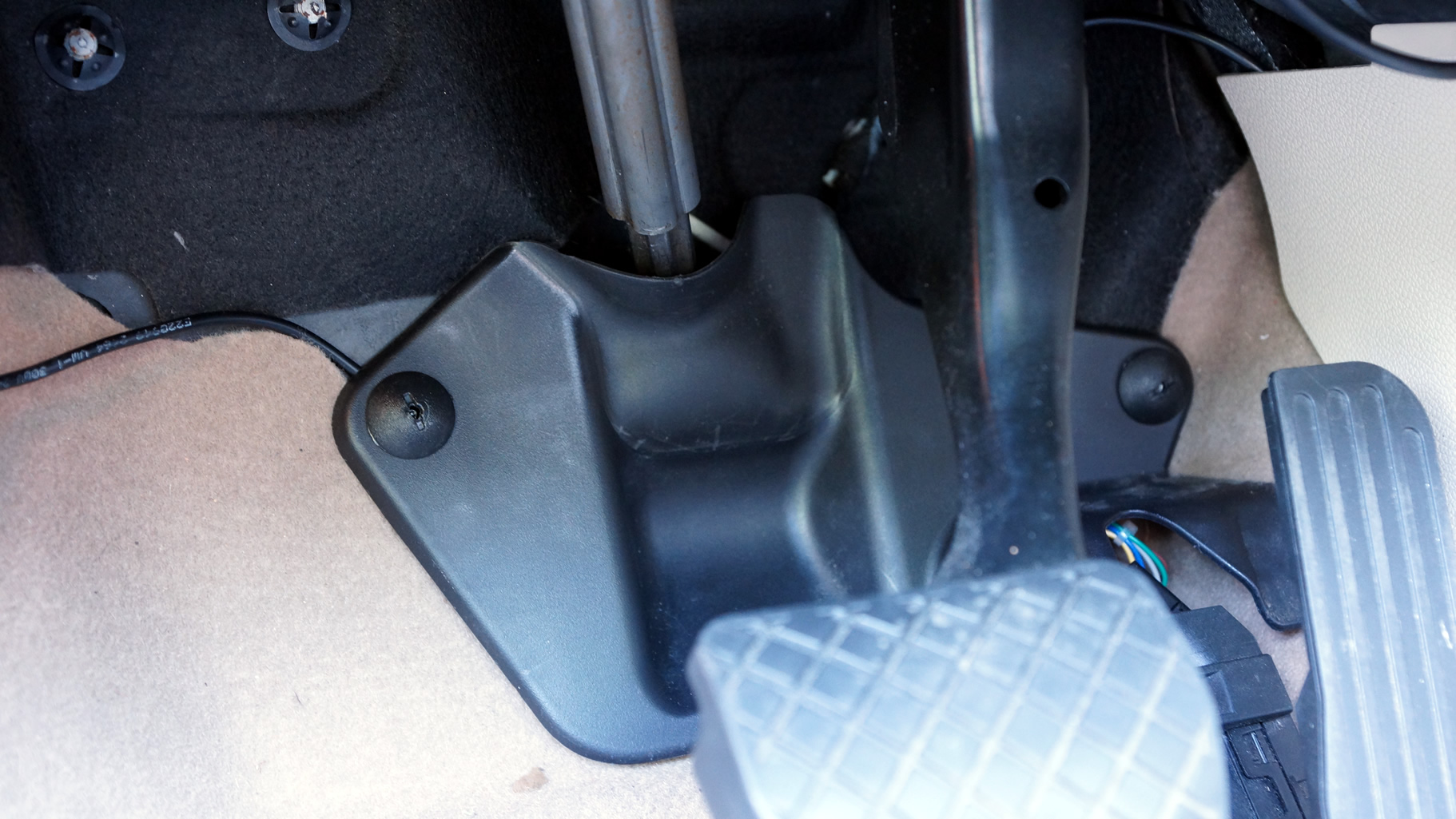

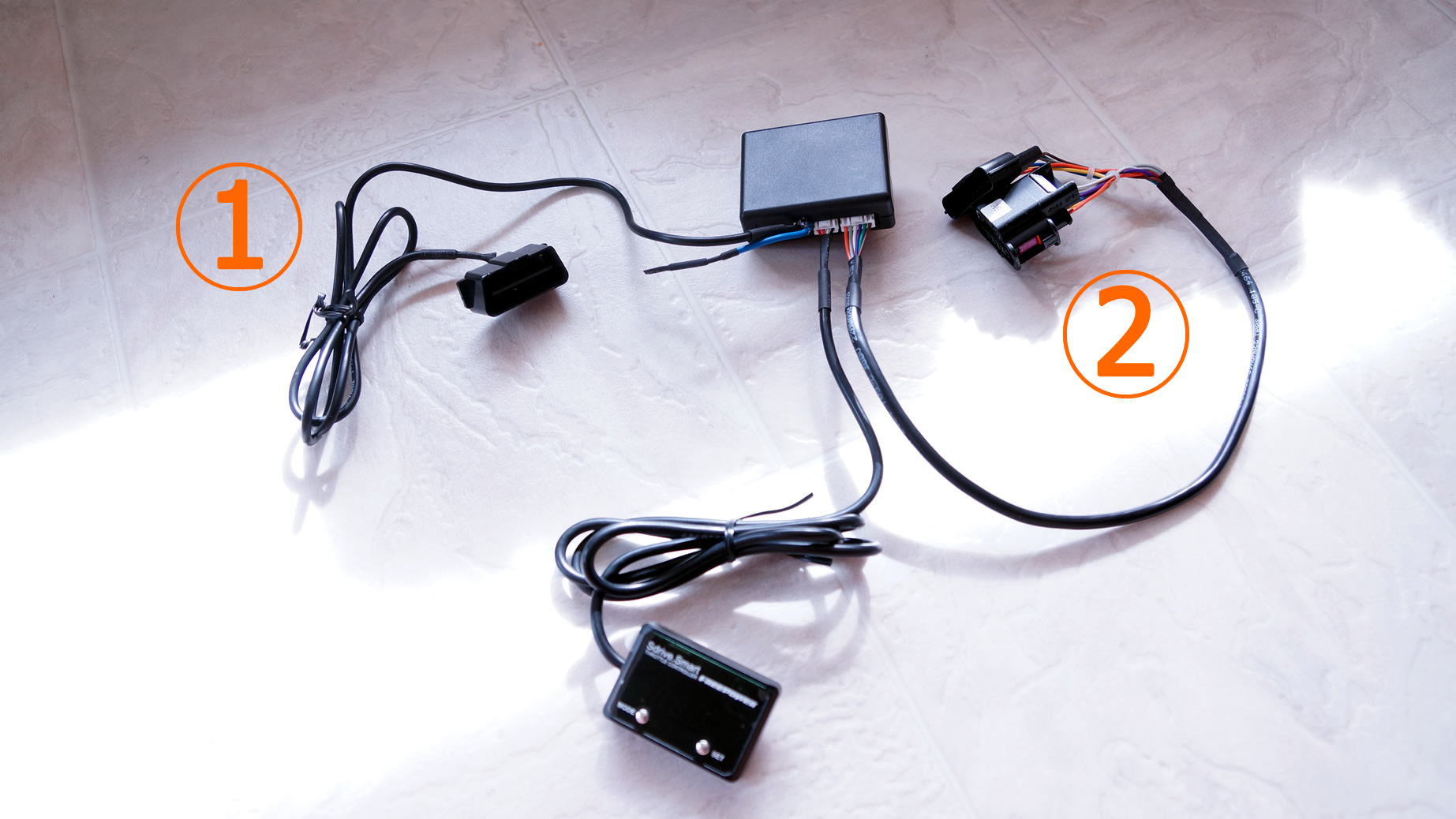

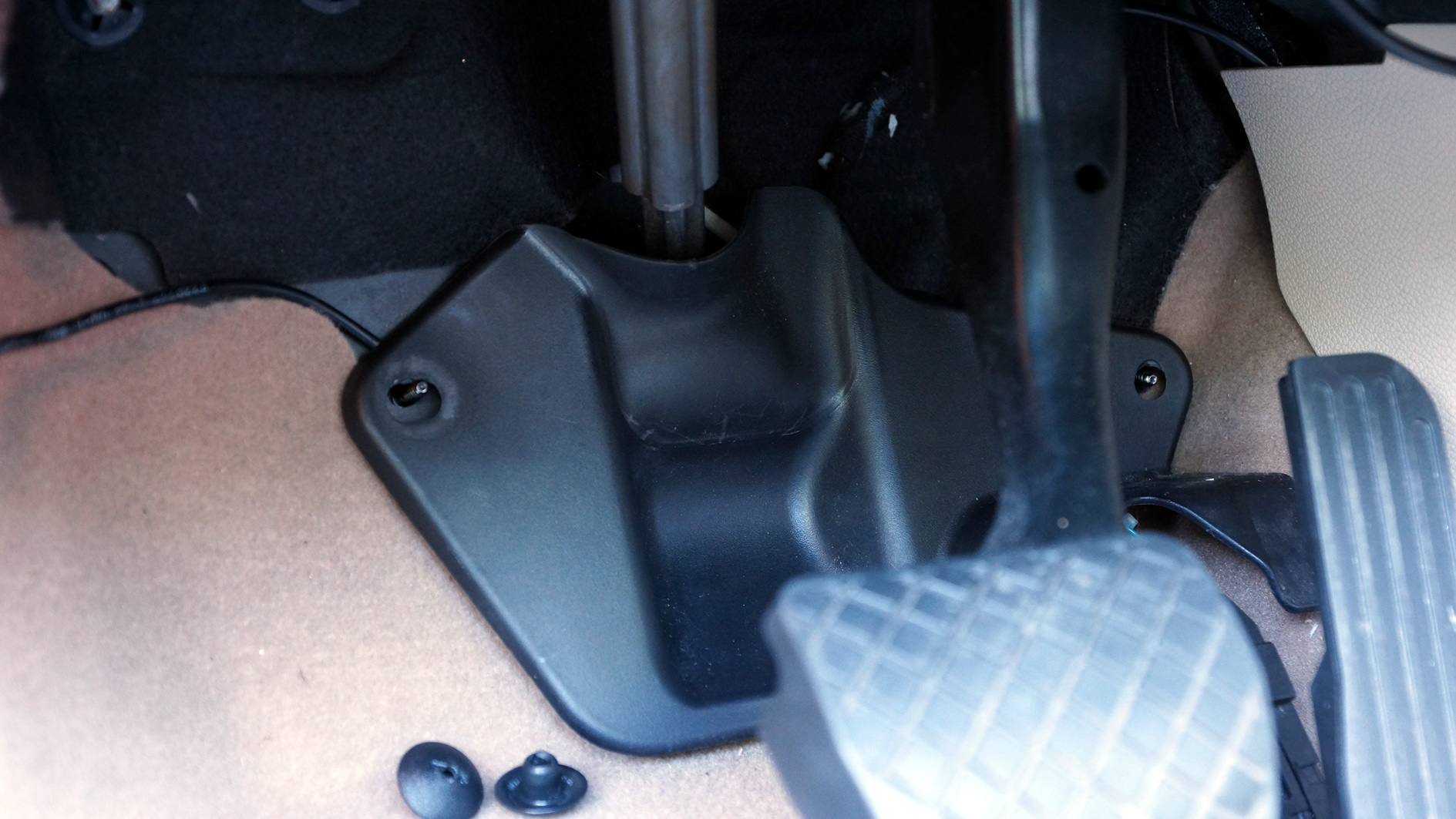

The ① is the power cable, which will plug into your OBD II port; while ② is to be installed between the gas pedal and the ECU. Now go ahead and remove the two screws that keep the bottom dust cover in place (behind your pedals).

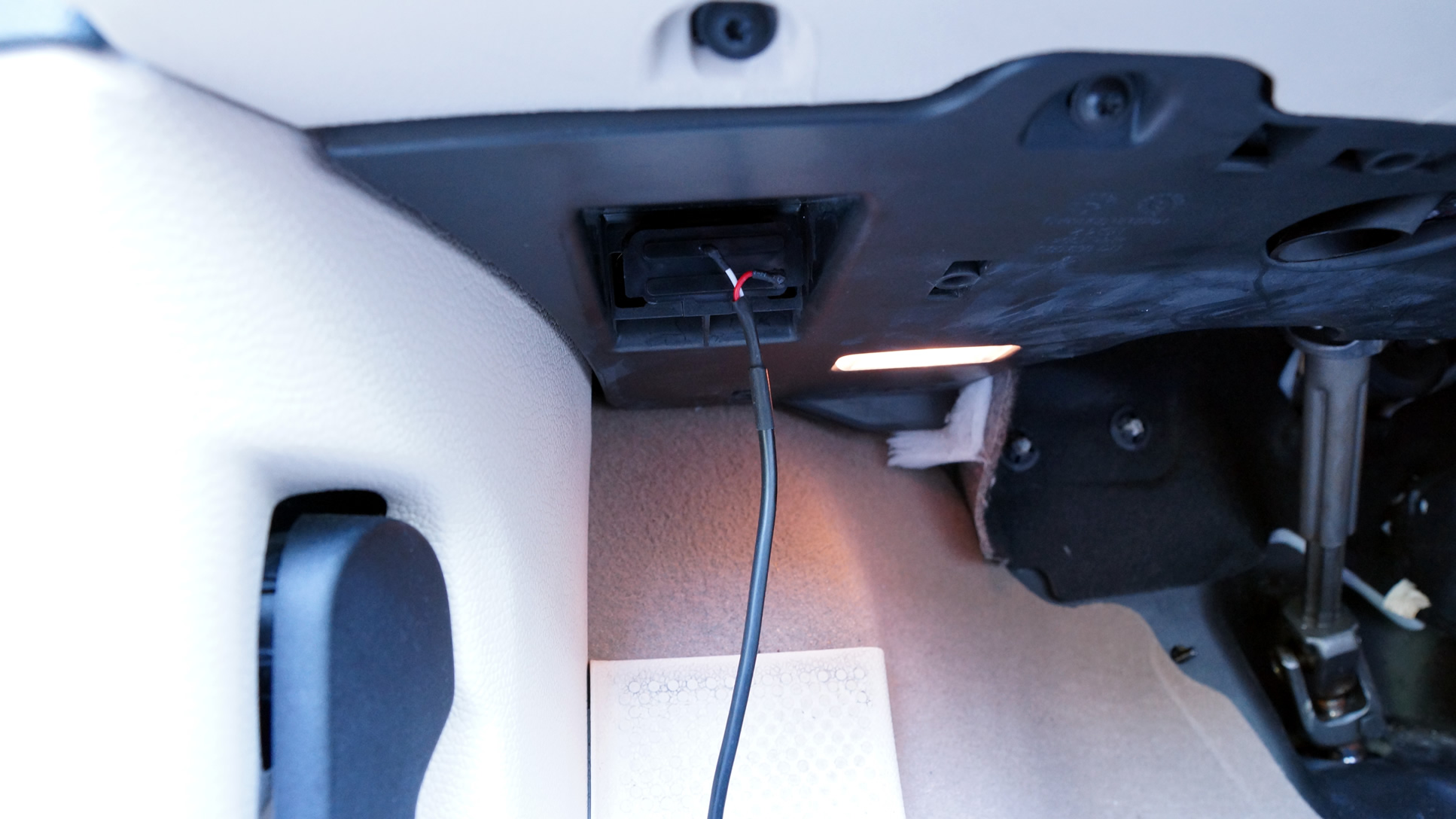

Now, plug ① into the car’s OBD II port undernearth the headlight switch.

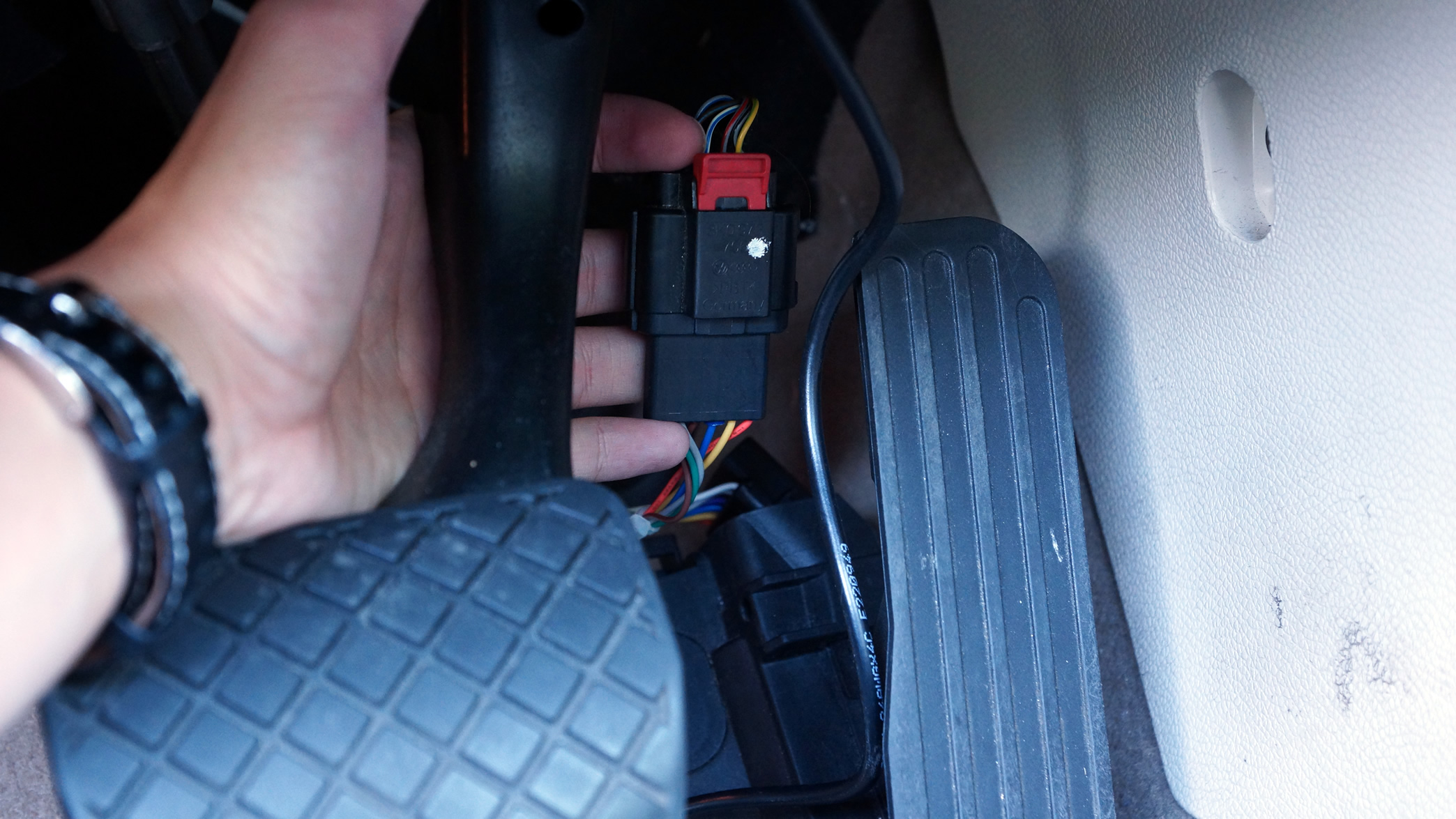

Turn off the car. Gently pull up the connector behind the gas pedal, then install ② as the bridge in between. One goes into the gas pedal connector, the other goes into the cable that was previously plugged into the gas pedal.


Once done, double check for all connectors. Make sure they are tight fit. I made a mistake of not plugging the power connector all the way into the ODB II port, and the device didn’t power up. Almost rage quit.

Reinstall the dust cover.

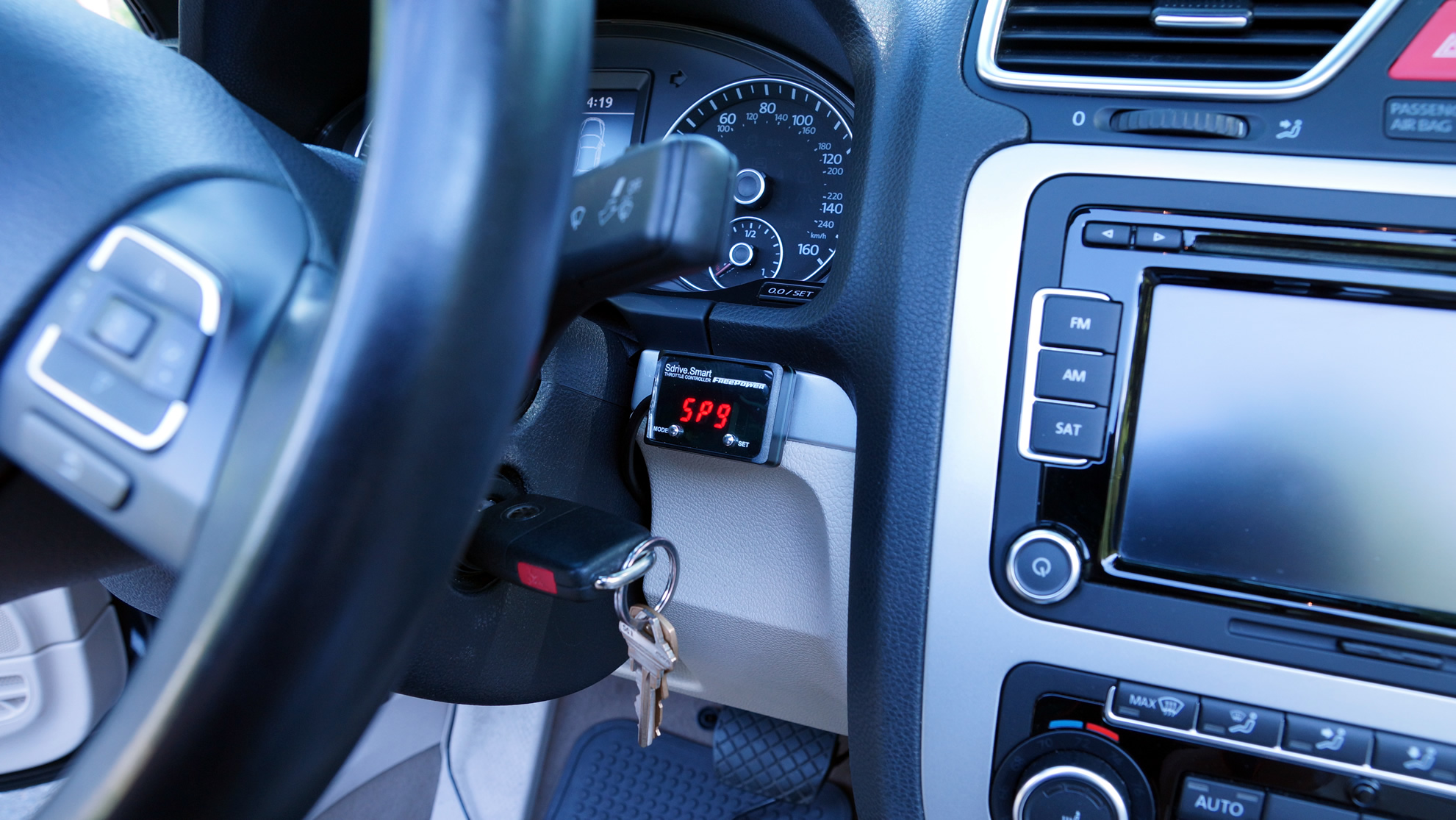

DO NOT START THE ENGINE. Instead, turn your key to ON position so you can initialize the SP11. Follow the manual page that came in the box and play with the settings on an empty back road to see which one you like best. I usually leave mine at SP8 or SP9. I did SP11 level once and I spun my wheels like a burnout just on the lightest touch of the foot.


6. Fail-Safe Condition

Our car is actually equipped with two different pedal sensors and I was curious to find out what would happen if the SP11 becomes malfunctioned or when it loses of power. So as something goes haywire with the device, the car will fall right into Limp Mode with both Check Engine Light and EPC Warning light on. Throttle pedal was deactivated and the car no longer accelerating, which removed my fear of an uncontrollable mad car doing 100mph on the street. I may actually do that one day with this song, though. You know, to save the world from the Darkness, Crowley, Leviathan and whatnot.

7. Test Video

I had a chance to record some footage of the differences between having the SP11 in action vs. normal mode (stock). I’d like you to listen to the sound and notice how fast the power comes under each of the two runs, while my foot remains at a steady pressure.

eos-fb-webDrop us a comment to let everyone knows if this has helped your car. If you are an Eos owner, be sure to join our Facebook group for community help and more DIY articles in the future.
