Samsung 850 Pro / 850 EVO versus 840 EVO and 840 SSD Series

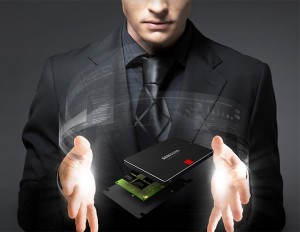

850pro_sec01Samsung 850 Pro SSD is currently the latest flagship of Samsung SSD family. Unlike traditional TLC/MLC-NAND used in previous 840 series, the 850 Pro utilizes the new V-NAND technology to raise the read/write speeds and IO consistency even higher than most today mainstream SSDs could offer, while remains as an affordable option to the mainstream market.

This V-NAND technology -or also called 3D NAND- actually has been given to the consumer market before. If you have been on top with Intel for the last couple of year, you should immediately find the similarity with Intel Tri-gate Transistor technology in those i7 5820K, 5930K and 5960X.

So, what does it really do?

img_V-NAND-04-0Basically V-NAND allows Samsung to stack layers of transistors on top of each other in a vertical, real cool Z-axis dimension; instead of spreading everything out like peanut butter on a carpet –which takes up more space and costs more money to produce. That’s so smart and innovative, right? Just like how people have done that concept to build tall, economical apartments approx 63 years before. sarcasm alert. But hey, it’s more difficult thus revolutionary when it comes to modern technology. Watch this video about V-NAND made by Samsung if you want a cool visual explanation.

Now besides the jump from TLC/MLC NAND to V-NAND, the fundamentals of 850 Pro are indeed the same as its siblings 840 and 840 EVO: triple-core MEX controller, SATA III interface.

However you can bet that the firmware are more carefully developed to push the new technology to the edges. For example, the 850 Pro comes with 10-year warranty simply because Samsung is very confident of the drive’s endurance which exceeds 150TB worth of data written to the drive in its entire lifetime (or 80GB per day for five consecutive years). Samsung also brags that during internal tests, the 850 Pro was still going strong and happy even after 8,000TB writes –not 8TB, not 80TB, not even 800TB but over 9000..oh…8000TB (damn it, so close!). Still, that is super impressive.

The Differences between Crucial MX200, MX100, BX100 and M500 Series.

Another great benefit from 3D NAND is data and power efficiency.

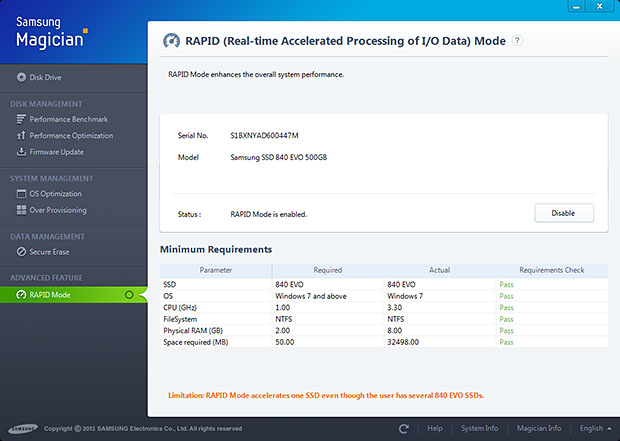

rapidBecause the platform is now structured vertically, packets can be delivered and retrieved quicker and at a more consistent interval. And also because of that, power consumption has been reduced to a mere 3W during taxing reads or writes.

Most benchmarks you may find for 850 Pro show that this series performs extremely well under normal and stress condition. With the support of RAPID technology – that can be enabled using Samsung proprietary Magician software – the 850 Pro easily tops the chart in anything you throw at it. With that being said, I’m really excited to have a new candidate for another super green mini home theater pc this coming month.

RAPID, short for Real-time Accelerated Processing of I/O Data, is a Samsung’s proprietary feature that automatically uses a portion of system memory as a temporary, larger and faster cache on top of the DRAM and main NAND.

How’s Samsung 850 EVO compared to 850 Pro ?

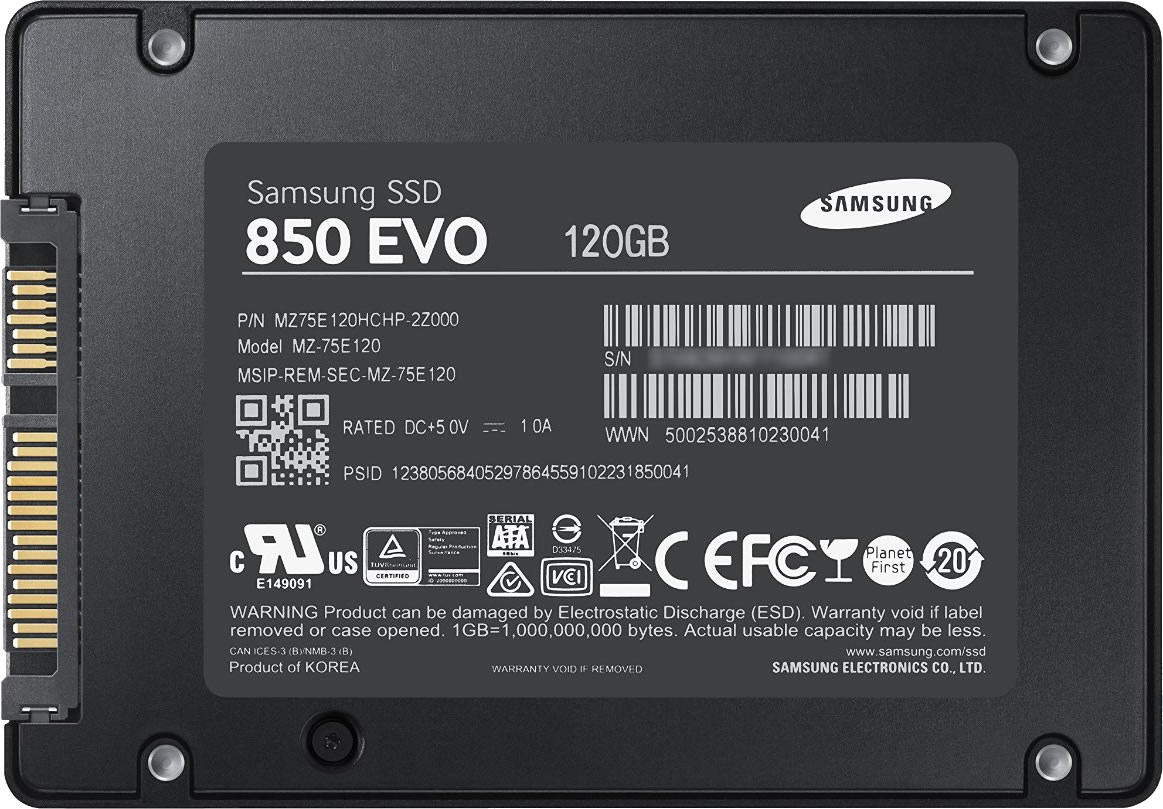

91GPLsJlVML._SL1500_A week into December and Samsung brought early Christmas present to the party. Things like this would have broke the Internet by no doubt but in reality, most of us are saving that moment for Half-life 3 or when Leo actually won an Oscar…however, out of all blessed things, apparently the color of a dress has accomplished that.

Now back with the game, the 850 EVO comes with the brand new and long-awaited NAND technology that Samsung teased us a few months back –the 128Gbit TLC 3D V-NAND. Keyword: TLC –no, not the cable network for those who question.

As you already remember –the 840 series is one of the first SSD to use TLC and successful proves that this type of flash memory is just as fast, as durable and as great as traditional upper-tier MLC NAND when done right. Today breakthrough is the structure of 850 EVO’s TLC now built like a deck of cards — 32 layers all stacked up just like the 850 Pro.

The strong advantage of vertical layers for a NAND is the power efficiency as well as the overall endurance. The 850 EVO now can take the beating up to 75TB of total writes for its 120GB and 250GB models. The 500GB and 1TB won’t get tired until 150TB of total writes. That simply puts the level of TLC V-NAND used in 850 EVO in almost the same measures as MLC V-NAND in 850 Pro. One can’t simply wear out this drive under normal work load. It will sit there and work diligently during your entire trip from the Shire to Mordor and back again, if that matters.

GTX 960 vs. GTX 970 vs. GTX 980 Graphics Cards.

SLC, MLC, TLC and Why ?
The first generation SSD in the market was expensive. They are fast because they use Single-level Cell (SLC). And as the name implies, its NAND Cell can only store 1-bit of data per cell. As the NAND technology progressed we began to have MLC, or Multi-level Cell –and then Triple-level Cell (TLC). To be honest, TLC has been around much longer but only exists in cheaper USB flash drives due to their lower level of endurance; which makes them unsuitable for system storage. But let’s take a look of the differences between TLC, MLC and SLC.

First, imagine three crazy girls and each one of them owns a barn. Mary has a little lamb, Jane has 2 horses and Cruella has 3 puppies.

Now the kind of animal that Mary, Jane and Cruella own isn’t important; but we all know they use their barn to keep the pet. Which is normal.

One barn two horses. Image courtesy of smartpakequineNow I’m not sure about Mary, but having a single lamb for the whole barn is overkill, not to mention the costs of construction. For Jane, it’s still an investment but then she uses one barn for two horses and it’s sure cheaper than having to build two barns for two horses. Which then brings us to the next chick. In this case, Cruella seems to be the most economical person because she has one barn for all 3 puppies.

Of the three girls, it’s easiest for Mary to find and take her pet out for a quick walk but it costs too much to build a barn for one pet where in reality, most people can’t afford it. If Mary has 10 lambs, that means she’d have to build 10 barns! Same reason Single-level Cell isn’t a great option for mainstream consumers.

On other hand, 2-bit per cell MLC is cheaper and still performance-efficient because if Jane has 10 horses, she only wants to build 5 barns. It also just takes a few minutes for her to gather all her pet or put them away. Plus it’s half the price Mary would have done.

Last of all, it’s cheapest for Cruella to keep her 3 puppies because it only takes one barn. The drawback is it’d take more time for her to retrieve all the little puppies out of the barn and put them in place. Not to mention what kind of damage the three little guys could do to the barn, thus reducing its endurance level. That’s what TLC is about.

101-dalmatians-disneyscreencaps.com-2468Then someone comes up with a 32-story barns. See, it’d takes up a large area to build 32 barns adjacent to each other but it takes less space to build a single barn with 32 different levels (monopoly game, anyone?). That single barn, as the matter of fact, could be bigger and wider and still doesn’t require as much land as 32 different barns.

It’s the best invention for Cruella because if she has 101 puppies, she can separate them to different levels of the 32-story barn. And because the space is bigger, every 3 puppies have more room to play and run around so they wouldn’t feel bored and chew the walls out. That’s how the new TLC V-NAND is a great improvement to traditional TLC. And with Samsung’s excellent proprietary firmware/controller, there isn’t much sacrifice in performance between MLC and TLC today. The controller is like a pet trainer here.

Want to know more technical explanation of this topic ? You can read Understanding TLC NAND at anandtech.com.

Another change that’s introduced with 850 EVO’s 120GB, 250GB and 500GB in particular is the dual-core MGX controller while this series’s 1TB model still uses the same Triple-core MEX found in 850 Pro. Now according to Samsung, you can rest assure that one fewer core doesn’t impact the performance of the drive in anyway. This helps Samsung on the production cost and perhaps it’s also a good thing for the end-users in term of pricing.

So if everything sounds so good, what’s the draw back? The 850 EVO is quite well rounded that in order to find its fault, we will have to sit here and split baby hair to pick the Cons. With V-NAND technology blessing on TLC like Castiel found his grace, now it is as fast/faster than most consumer-graded MLC in the market besides Samsung 850 Pro. Hell, it would even outlast them in endurance level.

If anything, it would be the firmware that those who had problem with the notorious performance-degraded issue on 840 Series should be concerned about. I trust that Samsung have learned that little yet significant lesson and got everything right this time for the market that loving and supporting them.

For now, 850 EVO is obviously the best price and best choice for any mainstream or gaming PC builds, while the 850 Pro becomes the great candidate for basic enterprise server, high-end workstation and heavy-duty multimedia production computers.

The Differences between Sandisk Ultra Plus, Ultra II and Extreme PRO

Here’s quick comparison of Samsung SSD family.

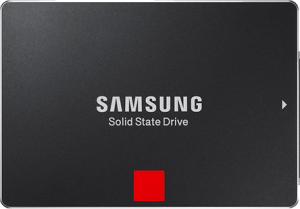

Samsung 850 Pro

samsung-850-pro-ssd-100354079-large

  • Sequential Read

    550MB/s

  • Sequential Write

    520MB/s (256GB, 512GB and 1TB)
    470MB/s (128GB)

  • 4KB Random Read

    100K IOPS (128GB)
    100K IOPS (256GB)
    100K IOPS (512GB and 1TB)

  • 4KB Random Write

    90K IOPS (128GB)
    90K IOPS (256GB)
    90K IOPS (512GB and 1TB)

  • DRAM (LPDDR2)

    256MB (128GB)
    512MB (256GB & 512GB)
    1GB (1TB)

  • NAND Type

    40nm 86Gbit 32-layer 3D V-NAND 2-bit MLC

  • Internal Controller

    ARM-based Triple-core MEX 400MHz

  • Power Consumption

    2.5mW in DevSleep mode
    3.3W (read) and 3.0W (write)

  • Endurance

    150 freaking TB with 10-year warranty

  • Encryption

    AES-256, TCG Opal 2.0 & IEEE-1667

  • Support RAPID, TurboWrite

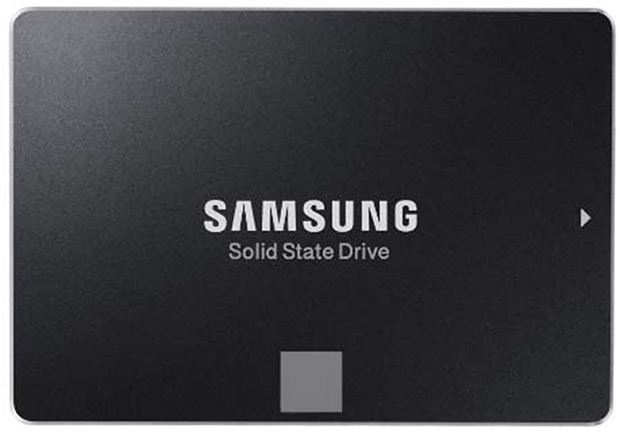

Samsung 850 EVO

small_samsung-850-evo

  • Sequential Read

    520MB/s

  • Sequential Write

    520MB/s (250GB, 500GB and 1TB)
    520MB/s (120GB)

  • 4KB Random Read

    94K IOPS (120GB)
    97K IOPS (250GB)
    98K IOPS (500GB and 1TB)

  • 4KB Random Write

    88K IOPS (120GB)
    88K IOPS (250GB)
    90K IOPS (500GB and 1TB)

  • DRAM (LPDDR2)

    256MB (120GB)
    512MB (250GB & 500GB)
    1GB (1TB)

  • NAND Type

    19nm 128Gbit 32-layer 3D V-NAND 3-bit TLC

  • Internal Controller

    Dual-core MGX (120GB, 250GB, 500GB)
    ARM-based Triple-core Cortex R4 MEX (1TB)

  • Power Consumption

    2mW in DevSleep mode
    3.7W (read) and up to 4.4W (write)

  • Endurance

    75TB with 5-year warranty

  • Encryption

    AES-256, TCG Opal 2.0 & IEEE-1667

  • Support RAPID, TurboWrite

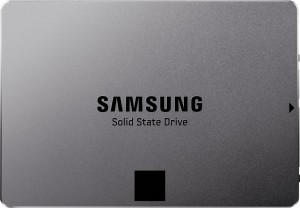

Samsung 840 EVO

Samsung-840-EVO-SSD-1TB

  • Sequential Read

    540MB/s

  • Sequential Write

    520MB/s (250GB, 500GB, 750GB, 1TB)
    410MB/s (120GB)

  • 4KB Random Read

    94K IOPS (120GB)
    97K IOPS (250GB)
    98K IOPS (750GB and 1TB)

  • 4KB Random Write

    35K IOPS  (120GB)
    66K IOPS  (120GB)
    90K IOPS  (120GB)

  • DRAM (LPDDR2)

    256MB (120GB)
    512MB (250GB and 500GB)
    1GB (750GB and 1TB)

  • NAND Type

    19nm Toggle DDR 2.0 NAND 3-bit TLC

  • Internal Controller

    ARM-based Triple-core MEX 400MHz

  • Power Consumption

    3.1mW idle.
    3.82W (read) and 3.85W (write)

  • Endurance

    40TB (120GB, 250GB) or 80TB (500GB, 1TB) with 3-year warranty

  • Encryption

    AES-256 FDE, PSID

  • Support RAPID, TurboWrite

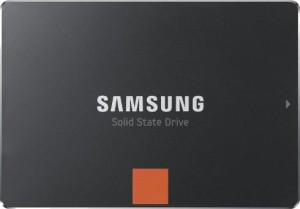

Samsung 840 PRO

41yhL6UiSOL

  • Sequential Read

    540MB/s

  • Sequential Write

    520MB/s (256GB and 512GB)
    390MB/s (128GB)

  • 4KB Random Read

    97K IOPS (128GB)
    100K IOPS (256GB)
    100K IOPS (512GB)

  • 4KB Random Write

    90K IOPS  (128GB)
    90K IOPS  (256GB)
    90K IOPS  (512GB)

  • DRAM (LPDDR2)

    256MB (128GB)
    512MB (256GB and 512GB)

  • NAND Type

    Samsung 21nm Toggle-Mode MLC

  • Internal Controller

    ARM-based Cortex-R4 Triple-core MDX 300MHz

  • Power Consumption

    5.4mW idle.
    average 6.9W

  • Endurance

    100TB with 5-year warranty

  • Encryption

    AES-256, Class0 SED

  • Support RAPID, TurboWrite

Samsung 850 EVO

small_samsung-850-evo

  • Sequential Read

    520MB/s

  • Sequential Write

    520MB/s (250GB, 500GB and 1TB)
    520MB/s (120GB)

  • 4KB Random Read

    94K IOPS (120GB)
    97K IOPS (250GB)
    98K IOPS (500GB and 1TB)

  • 4KB Random Write

    88K IOPS (120GB)
    88K IOPS (250GB)
    90K IOPS (500GB and 1TB)

  • DRAM (LPDDR2)

    256MB (120GB)
    512MB (250GB & 500GB)
    1GB (1TB)

  • NAND Type

    19nm 128Gbit 32-layer 3D V-NAND 3-bit TLC

  • Internal Controller

    Dual-core MGX (120GB, 250GB, 500GB)
    ARM-based Triple-core Cortex R4 MEX (1TB)

  • Power Consumption

    2mW in DevSleep mode
    3.7W (read) and up to 4.4W (write)

  • Endurance

    75TB with 5-year warranty

  • Encryption

    AES-256, TCG Opal 2.0 & IEEE-1667

  • Support RAPID, TurboWrite

Samsung 850 Pro

samsung-850-pro-ssd-100354079-large

  • Sequential Read

    550MB/s

  • Sequential Write

    520MB/s (256GB, 512GB and 1TB)
    470MB/s (128GB)

  • 4KB Random Read

    100K IOPS (128GB)
    100K IOPS (256GB)
    100K IOPS (512GB and 1TB)

  • 4KB Random Write

    90K IOPS (128GB)
    90K IOPS (256GB)
    90K IOPS (512GB and 1TB)

  • DRAM (LPDDR2)

    256MB (128GB)
    512MB (256GB & 512GB)
    1GB (1TB)

  • NAND Type

    40nm 86Gbit 32-layer 3D V-NAND 2-bit MLC

  • Internal Controller

    ARM-based Triple-core MEX 400MHz

  • Power Consumption

    2.5mW in DevSleep mode
    3.3W (read) and 3.0W (write)

  • Endurance

    150 freaking TB with 10-year warranty

  • Encryption

    AES-256, TCG Opal 2.0 & IEEE-1667

  • Support RAPID, TurboWrite

Samsung 840 EVO

Samsung-840-EVO-SSD-1TB

  • Sequential Read

    540MB/s

  • Sequential Write

    520MB/s (250GB, 500GB, 750GB, 1TB)
    410MB/s (120GB)

  • 4KB Random Read

    94K IOPS (120GB)
    97K IOPS (250GB)
    98K IOPS (750GB and 1TB)

  • 4KB Random Write

    35K IOPS  (120GB)
    66K IOPS  (120GB)
    90K IOPS  (120GB)

  • DRAM (LPDDR2)

    256MB (120GB)
    512MB (250GB and 500GB)
    1GB (750GB and 1TB)

  • NAND Type

    Samsung 19nm 3bpc TLC Toggle DDR 2.0 NAND

  • Internal Controller

    ARM-based Triple-core MEX 400MHz

  • Power Consumption

    3.1mW idle.
    3.82W (read) and 3.85W (write)

  • Endurance

    40TB (120GB, 250GB) or 80TB (500GB, 1TB) with 3-year warranty

  • Encryption

    AES-256 FDE, PSID

  • Support RAPID, TurboWrite

Samsung 840 PRO

41yhL6UiSOL

  • Sequential Read

    540MB/s

  • Sequential Write

    520MB/s (256GB and 512GB)
    390MB/s (128GB)

  • 4KB Random Read

    97K IOPS (128GB)
    100K IOPS (256GB)
    100K IOPS (512GB)

  • 4KB Random Write

    90K IOPS  (128GB)
    90K IOPS  (256GB)
    90K IOPS  (512GB)

  • DRAM (LPDDR2)

    256MB (128GB)
    512MB (256GB and 512GB)

  • NAND Type

    Samsung 21nm Toggle-Mode MLC

  • Internal Controller

    ARM-based Cortex-R4 Triple-core MDX 300MHz

  • Power Consumption

    5.4mW idle.
    average 6.9W

  • Endurance

    100TB with 5-year warranty

  • Encryption

    AES-256, Class0 SED

  • Support RAPID, TurboWrite

3 Best Z97 Gaming Motherboards That Don’t Break The Bank

Benchmarks FYI

Desktop IOmeter – 4K Random Read
Samsung 850 Pro 1TB105.6 pts
Samsung 850 EVO 500GB103.9 pts
Samsung 850 EVO 250GB101.6 pts
Samsung 850 EVO 120GB101.6 pts
Samsung 840 Pro 512GB103.0 pts
Samsung 850 Pro 128GB98.1 pts
Samsung 850 Pro 512GB97.9 pts
Samsung 840 EVO 1TB96.0 pts
Samsung 840 EVO 250GB94.0 pts
Samsung 840 EVO 120GB91.7 pts
Crucial M550 1TB95.2 pts
Crucial MX100 512GB90.6 pts
Desktop IOmeter – 4K Random Write
Crucial MX100 256GB309.2 pts
Samsung 850 EVO 500GB301.7 pts
Samsung 850 EVO 250GB298.6 pts
Samsung 850 Pro 512GB292.7 pts
Samsung 850 Pro 256GB292.4 pts
Samsung 850 Pro 1TB291.9 pts
Samsung 840 Pro 512GB287.7 pts
Crucial M550 1TB287.2 pts
Samsung 850 EVO 1TB285.5 pts
Samsung 840 EVO 1TB271.9 pts
Samsung 850 EVO 120GB170.2 pts
Samsung 840 EVO 120GB147.8 pts

Last thought — Be sure to prepare your BIOS for a SSD (AHCI Mode) if you plan on buying one. I’d also love to see more competitors rise up for the challenge, though. Crucial’s current best bet is the MX200 and for Sandisk, that would be the Extreme Pro II series. But at the mean time, my guess is the 850 Pro and 850 EVO will totally dominate the SSD market this fengshui year.
